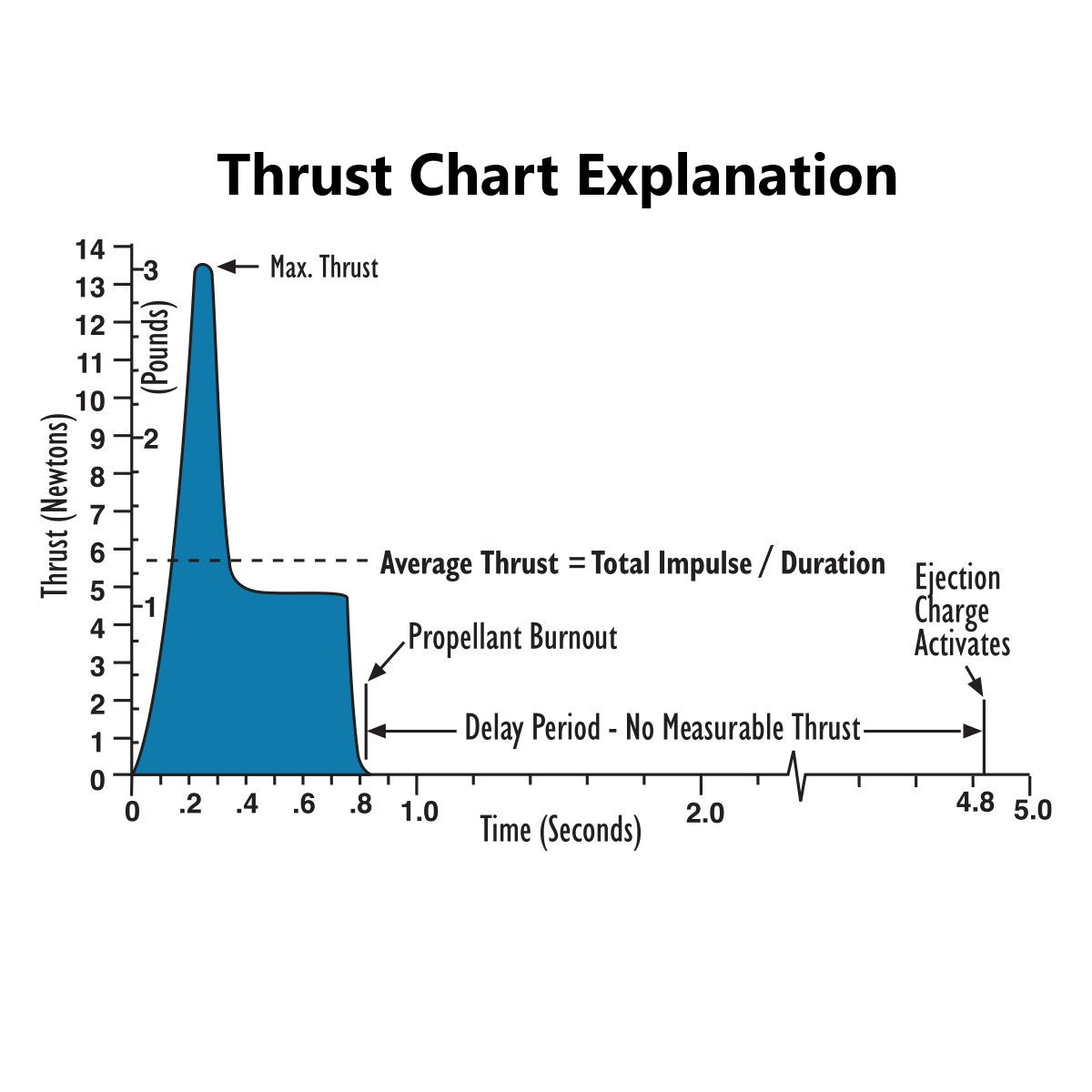

Model Rocket Thrust Curve Example
A8-5 Engines
A8 Model Rocket Engine Thrust Curve Chart
Model Rocket Thrust Curve Example
Estes Rockets

A8-5 Engines

SKU: 001599
$11.29
Sale

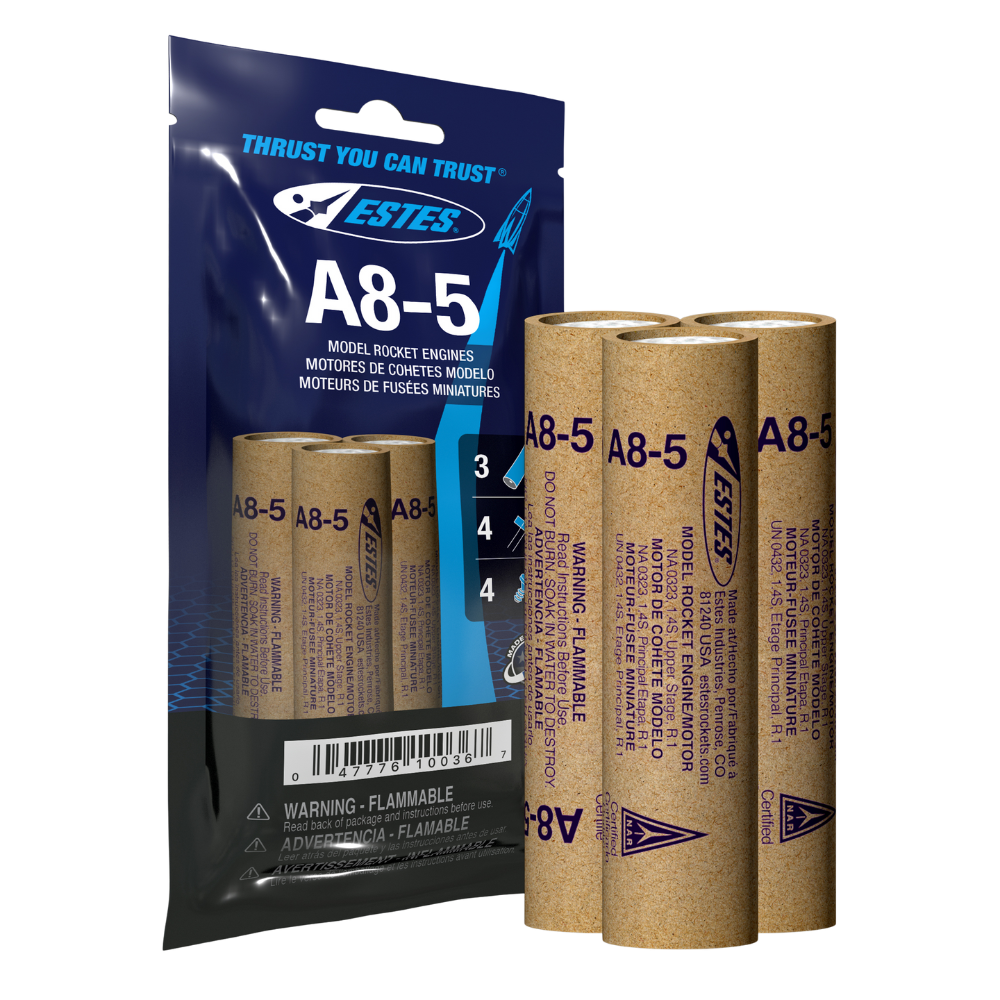

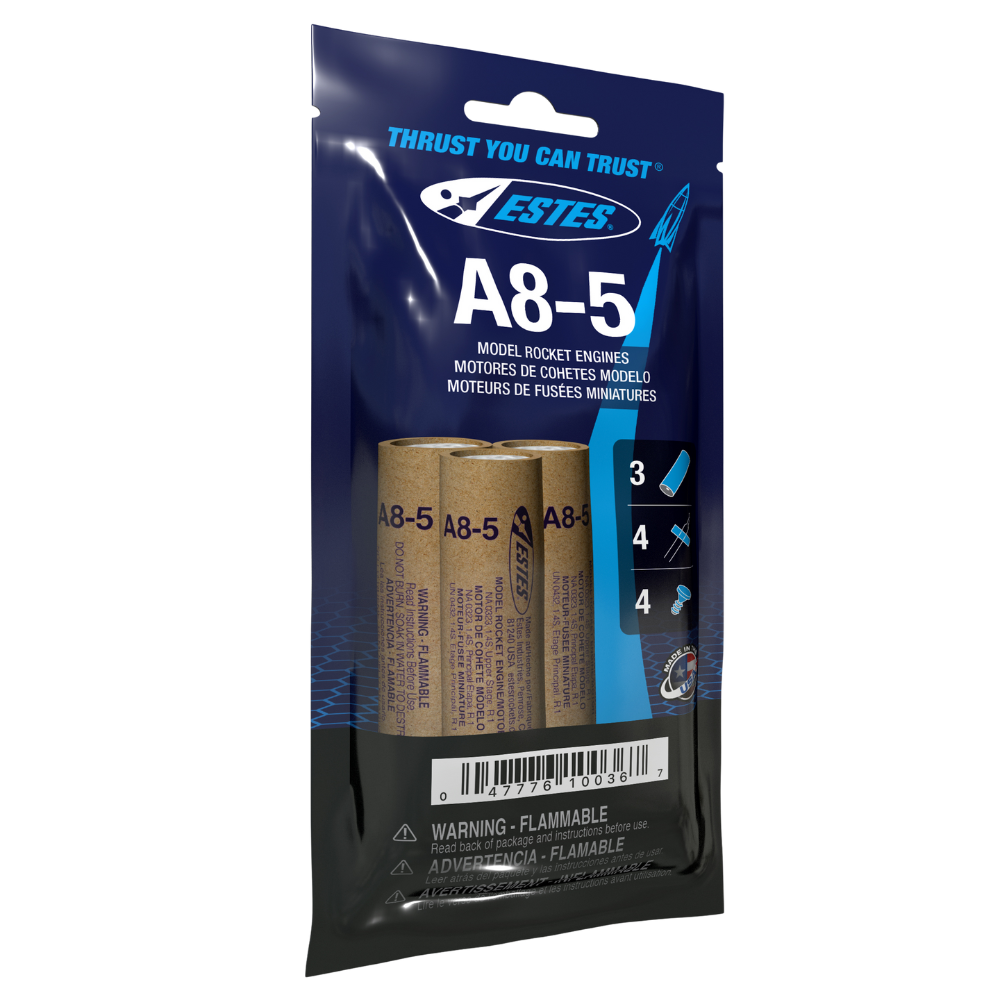

ENGINES FOR MODEL ROCKETS

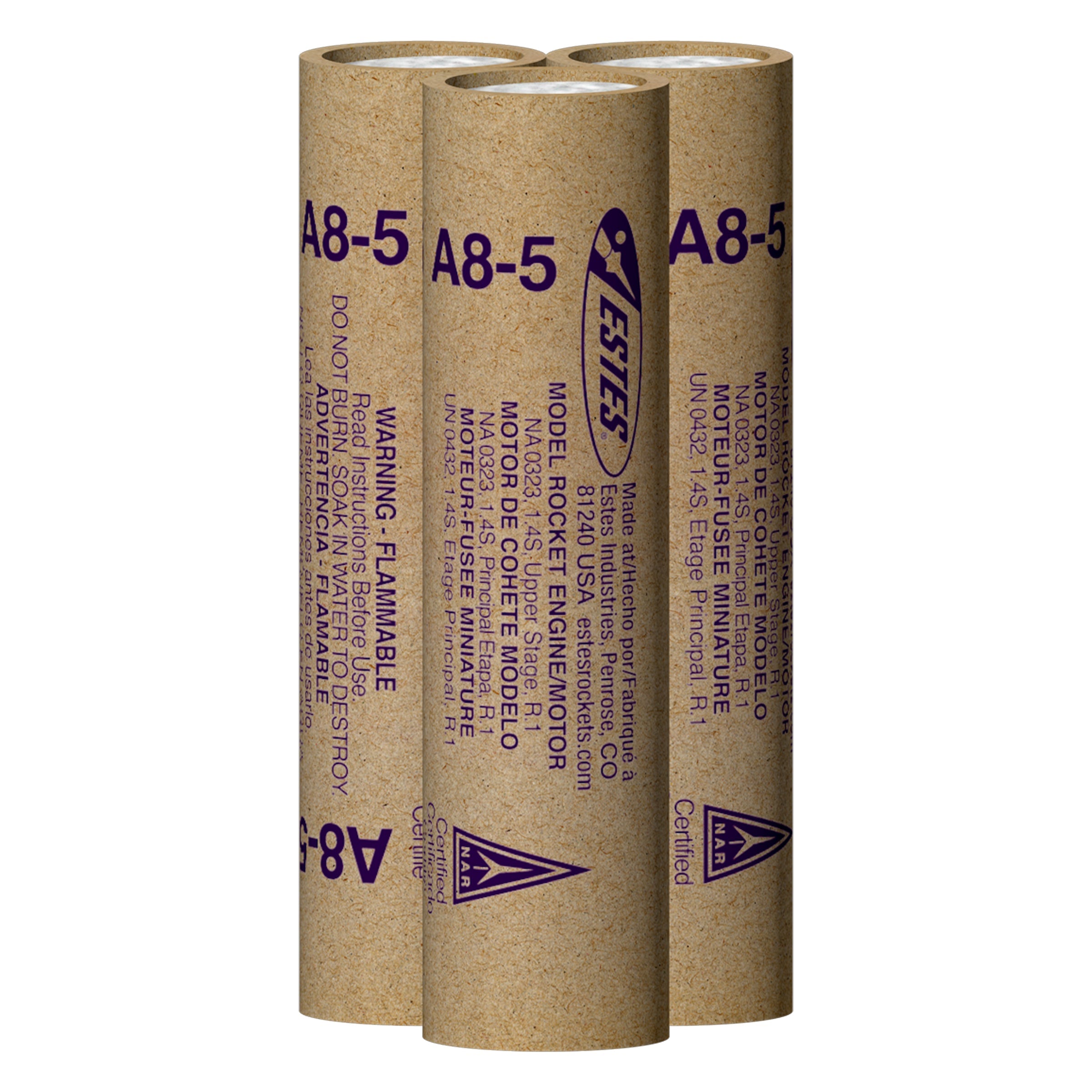

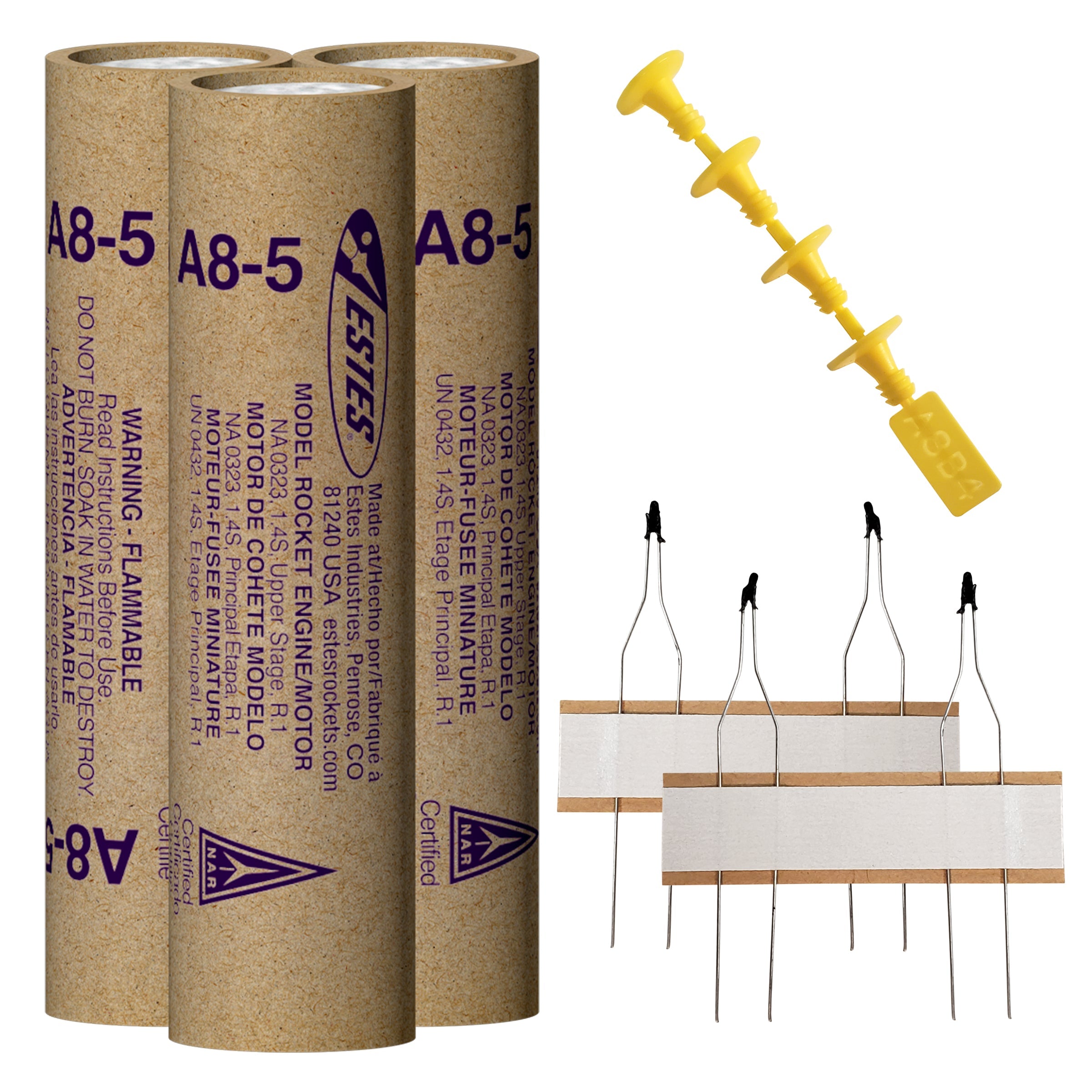

3 – A8-5 Engines
4 – Starters
4 – Starter Plugs

PLEASE NOTE: You must have a physical address for delivery.

Overview

Recommended Rockets

Specs

Reviews

Overview

The Estes A8-5 engine is an upper stage stage engine designed for model rocket flight. This engine can also be used as a single stage engine in rockets weighing less than 5 ounces, including the engine. Each package includes 3 engines, 4 starters and 4 plugs.

ATTENTION: Residents of California, New Jersey, Rhode Island and North Dakota please review the Terms of Sale for state specific restrictions or Click Here for State Specific Restrictions.

Overview

A8-5 Engines

Compatible Rockets

  • Estes Wizard Rocket

    Wizard™

    Wizard™

    $14.99
    $14.99
  • Generic E2X Package and Rocket

    Generic E2X®

    Generic E2X®

    $23.99
    $23.99

Technical Specifications

Technical Specifications

  • Total Impulse

2.50 N-sec

  • Time Delay

5 Seconds

  • Max Lift Weight

2.0 oz (57 g)

  • Max Thrust

13.30 Newtons (3.0 lbs)

  • Thrust Duration

0.50 Seconds

  • Length

2.8 in. (7 cm)

  • Diameter

18 mm

  • Weight

.55 oz. (15.6 g)

  • Propellant Weight

0.14 oz (4.1 g)

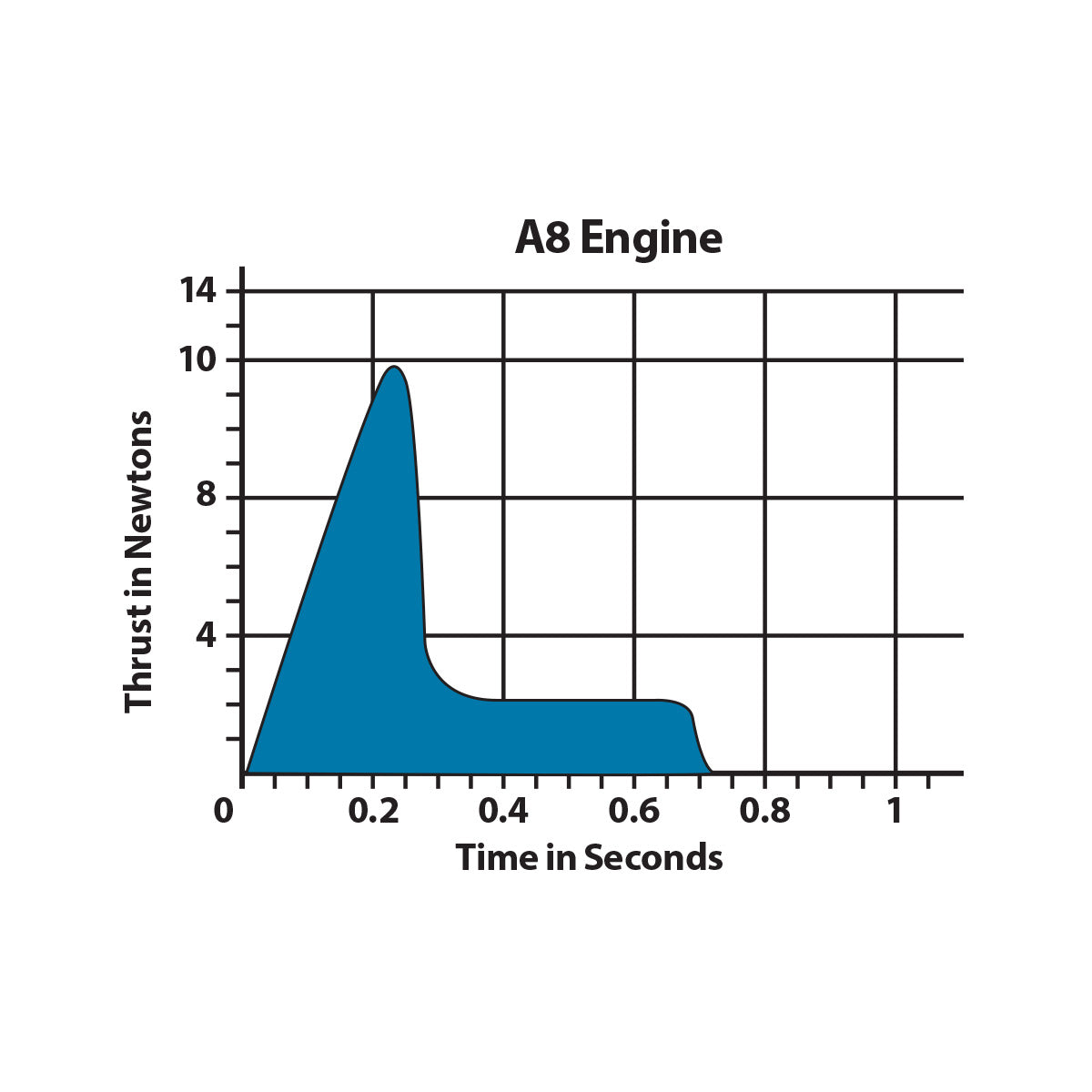

A8 Model Rocket Engine Thrust Curve Chart
