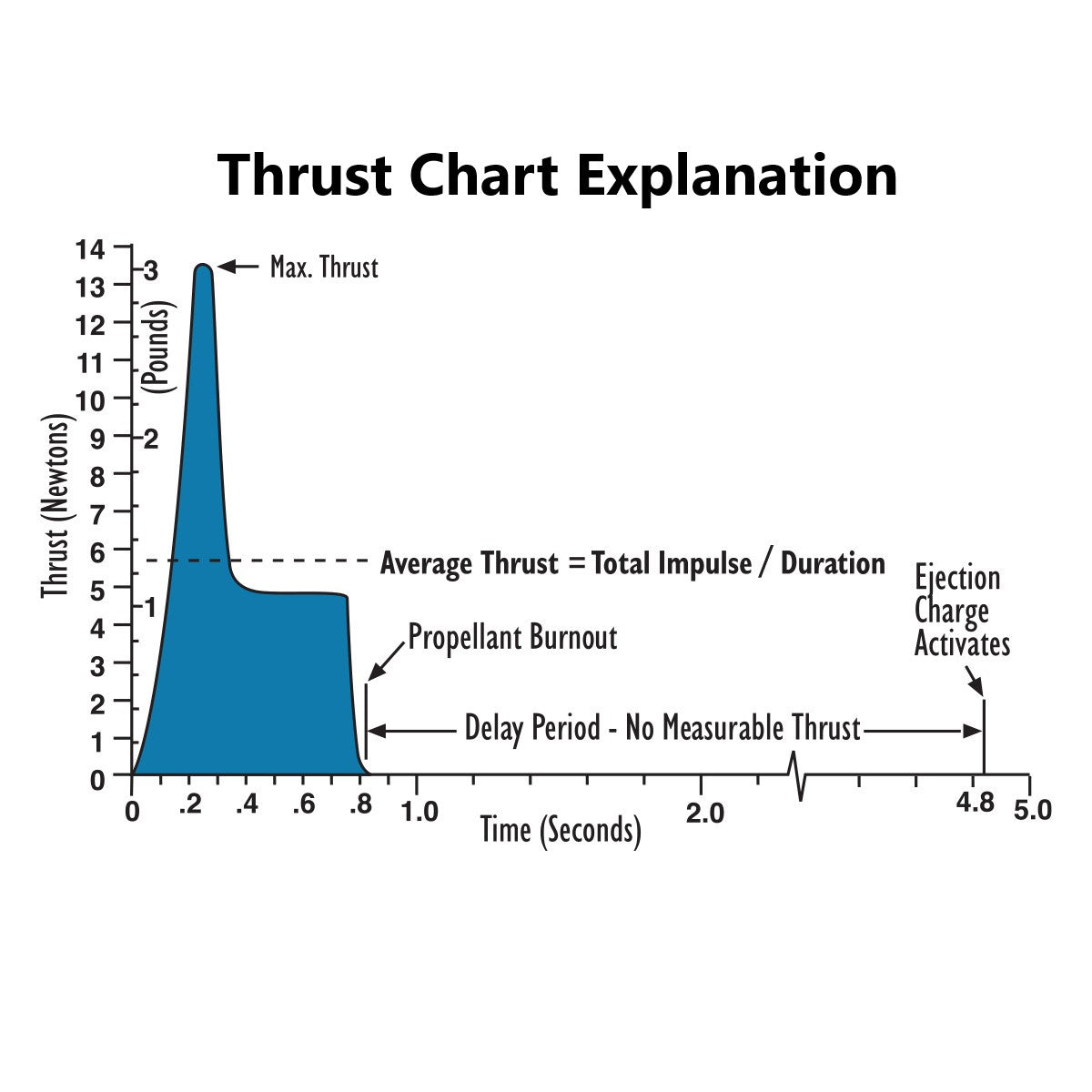

Model Rocket Thrust Curve Example
    Estes C11-7 Model Rocket Engines
    C11 Model Rocket Engine Thrust Curve Chart
    Model Rocket Thrust Curve Example
    Estes Rockets

    C11-7 Engines

    SKU: 001524
    $9.99
    Sale

    ENGINES FOR MODEL ROCKETS

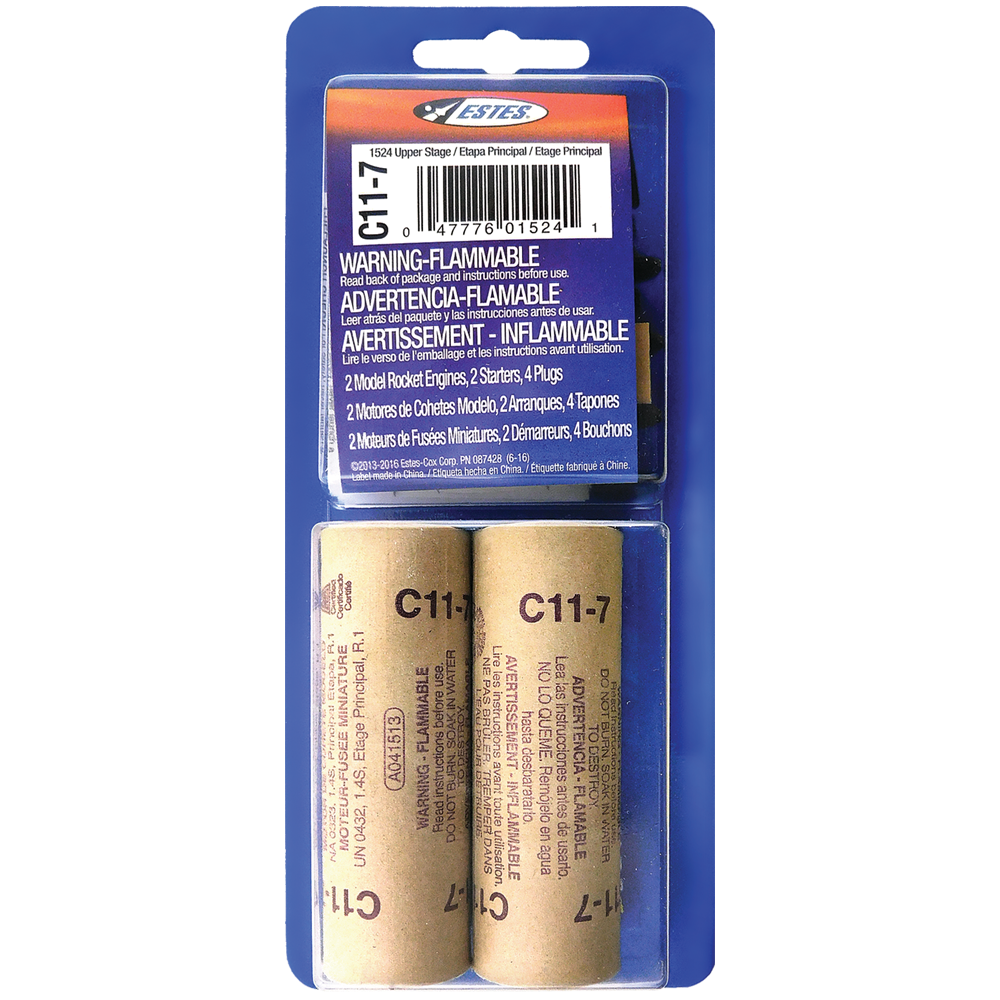

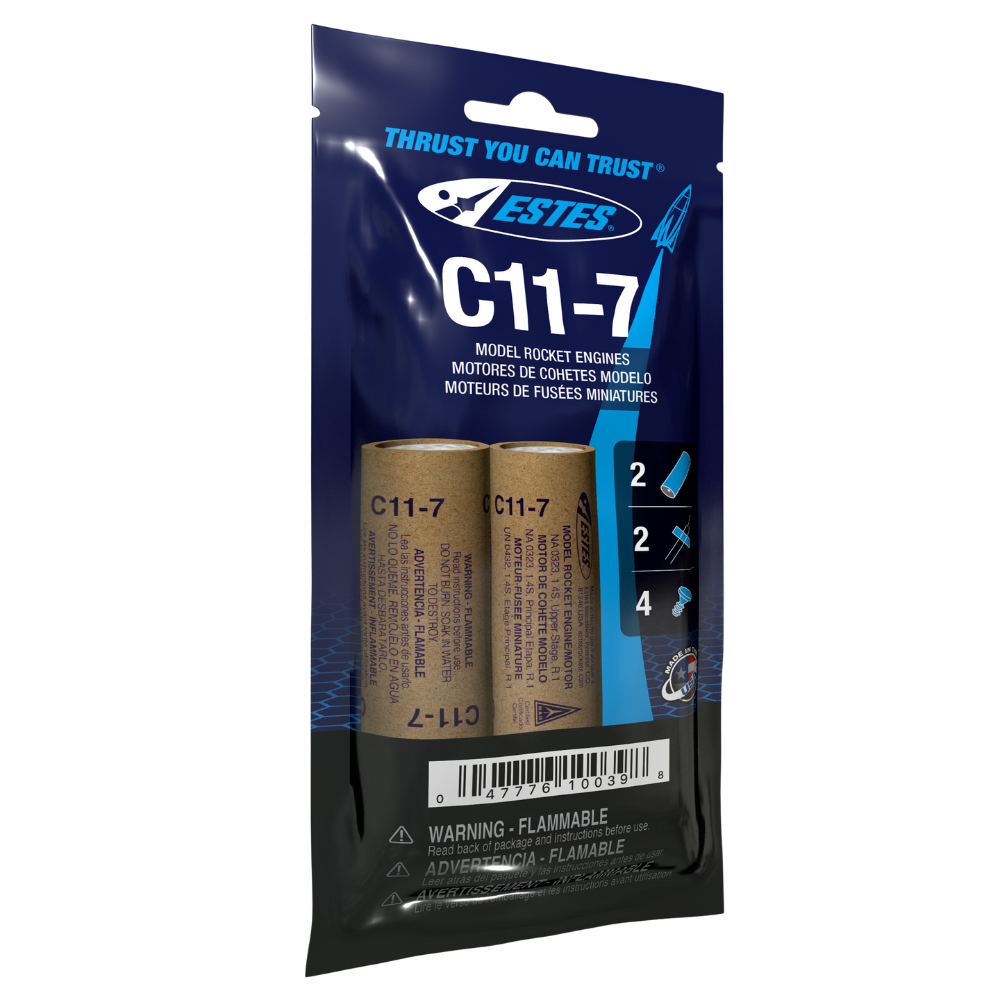

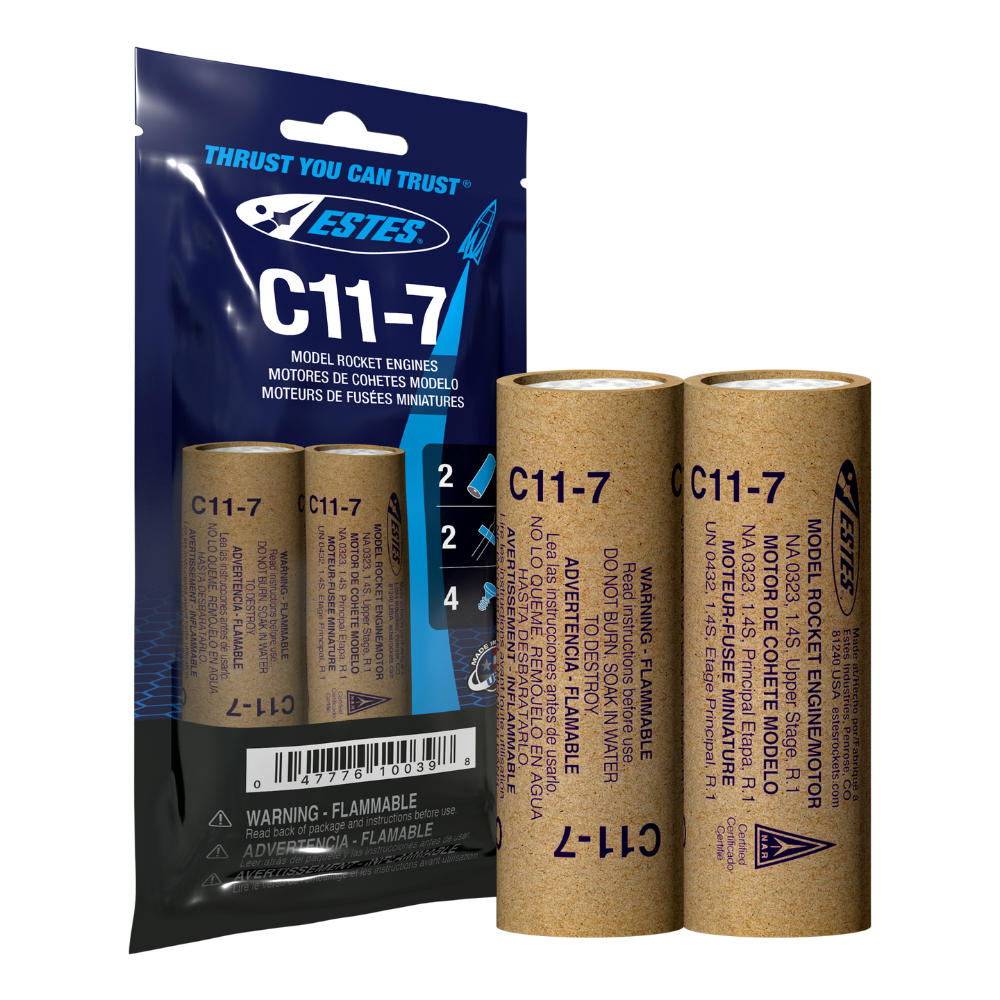

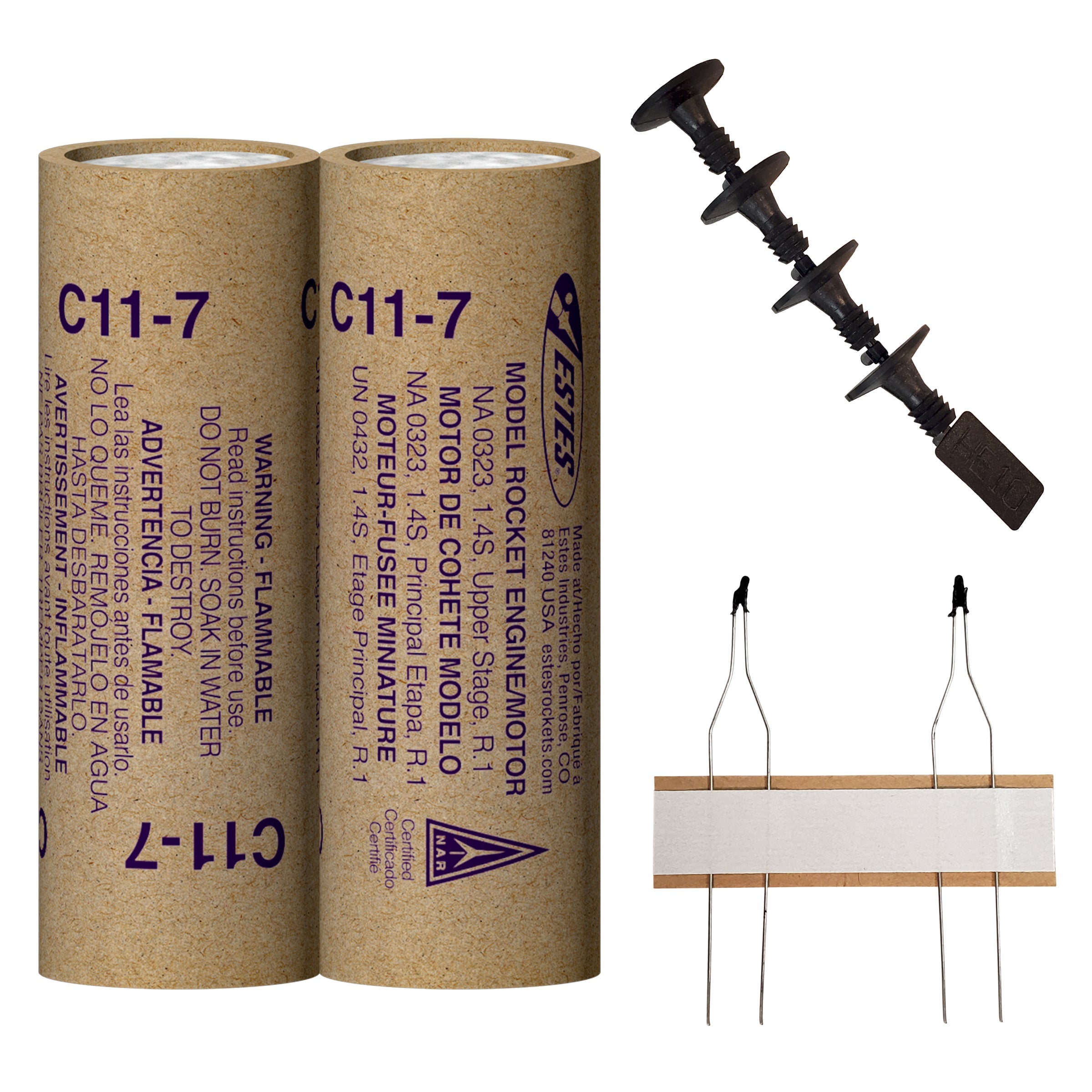

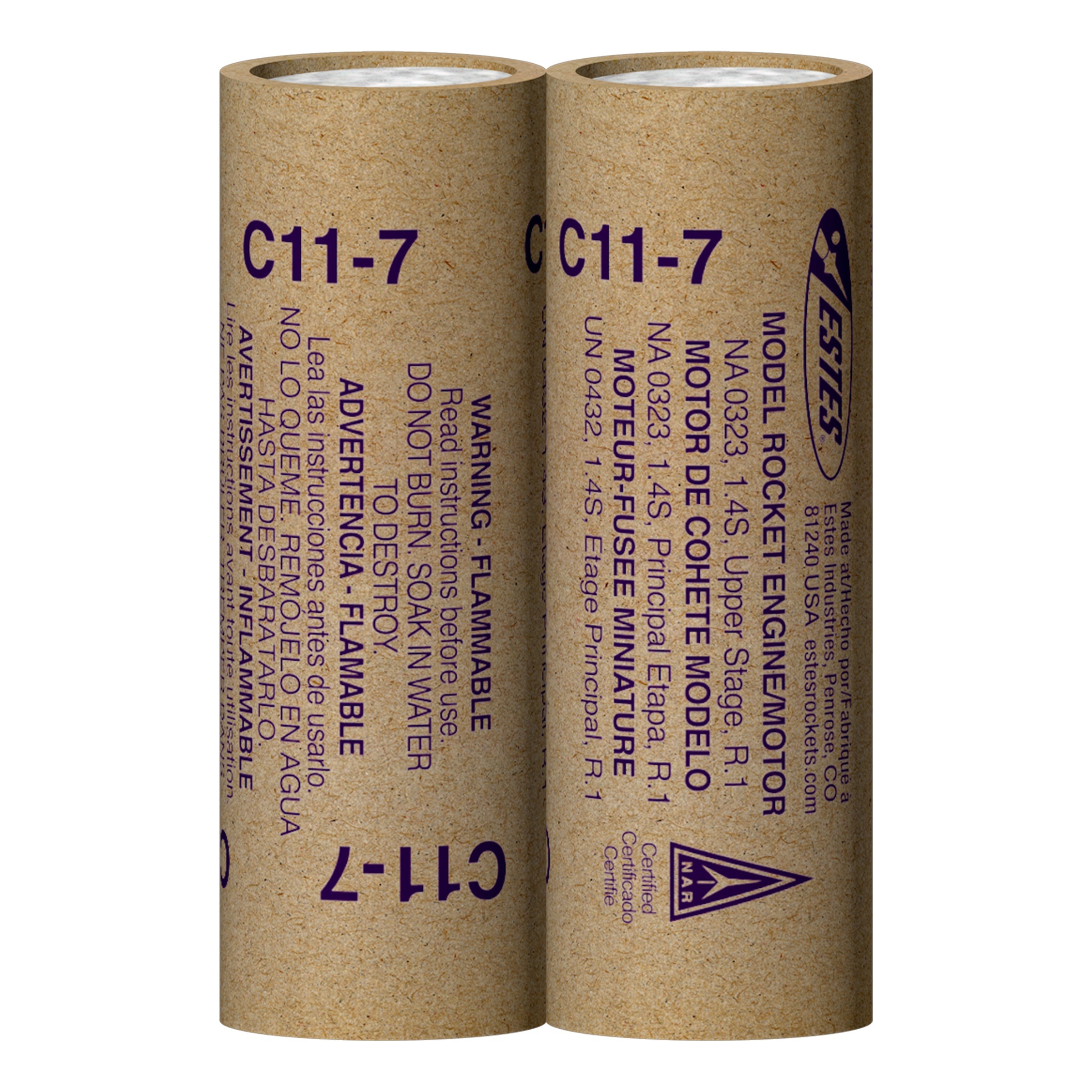

    2 – C11-7 Engines
    2 – Starters
    4 – Starter Plugs

    PLEASE NOTE: You must have a physical address for delivery.

    Overview

    Specs

    Reviews

    Overview

    The Estes C11-7 engine is a single stage engine designed for model rocket flight. This engine is a 24mm diameter engine designed for rockets with a maximum lift weight of less than 4 ounces. Each package includes 2 engines, 2 starters and 4 starter plugs.

    ATTENTION: Estes Industries, LLC requires all purchasers and users of Estes® Model Rocket Engines to adhere strictly to all applicable local, state, and federal laws, regulations, and safety standards. The user assumes all responsibility for the safe and lawful use of Estes® products. Estes Industries, LLC expressly disclaims any and all liability for personal injury, property damage, or other loss resulting from the misuse, improper handling, or unauthorized application of its model rocket engines.

    Overview

    Estes C11-7 Model Rocket Engines

    Technical Specifications

    Technical Specifications

    • Total Impulse

    10.00 N-sec

    • Time Delay

    7 Seconds

    • Max Lift Weight

    4.0 oz (113 g)

    • Max Thrust

    22.10 Newtons (4.9 lbs)

    • Thrust Duration

    0.80 Seconds

    • Length

    2.75 in. (7 cm)

    • Diameter

    24 mm

    • Weight

    1.19 in. (33.7 g)

    • Propellant Weight

    0.44 oz (12.4 g)

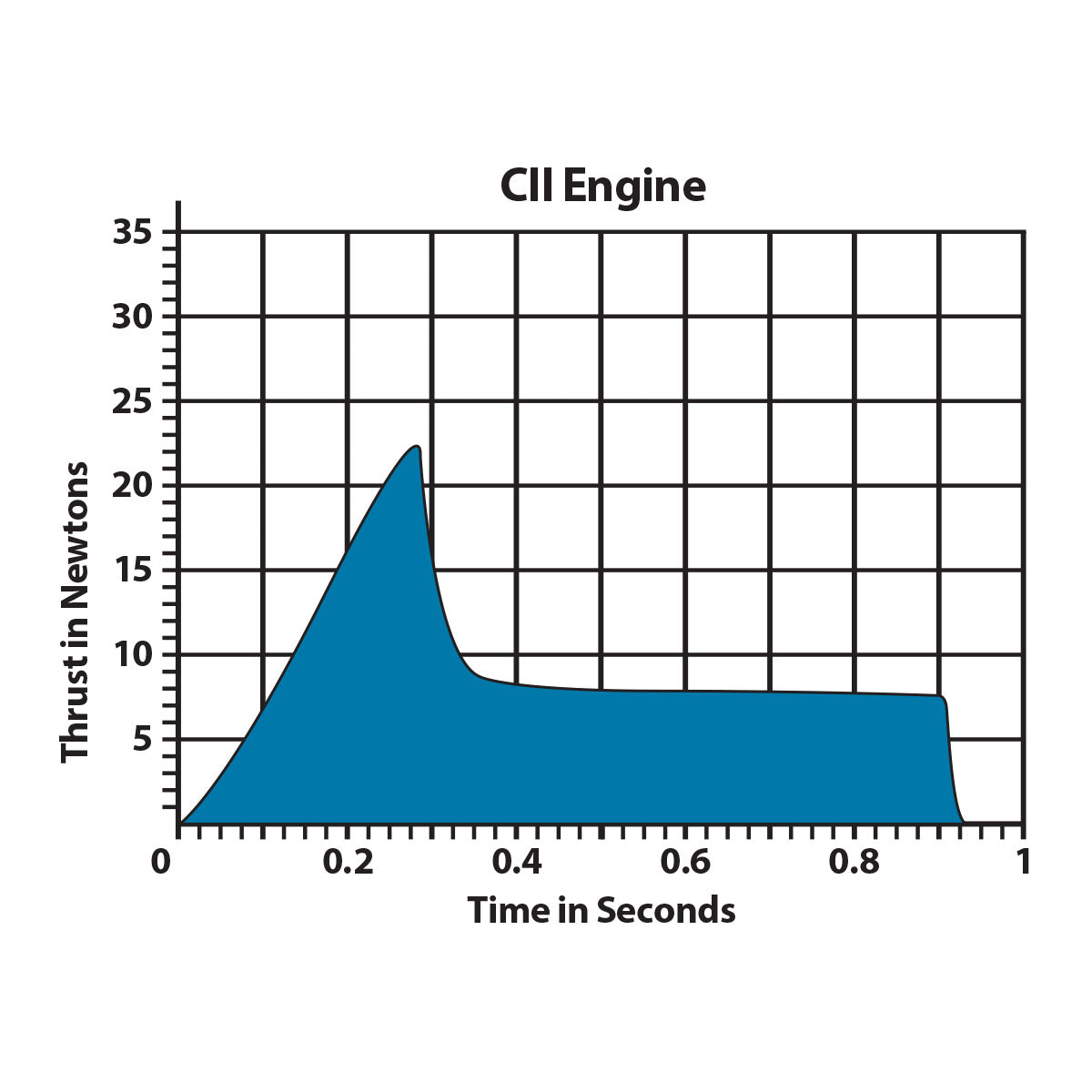

    C11 Model Rocket Engine Thrust Curve Chart
