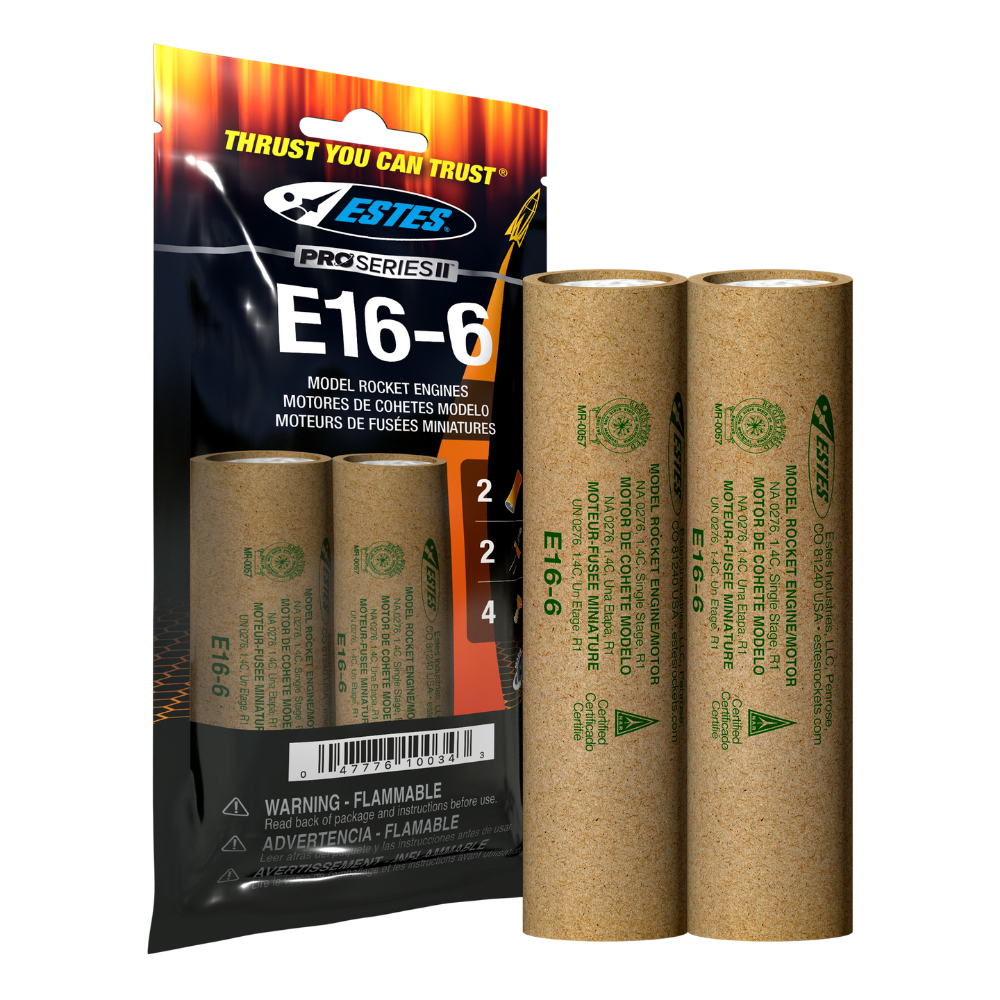

Estes E16-6 Model Rocket Engines
E16 Model Rocket Engine Thrust Curve Chart

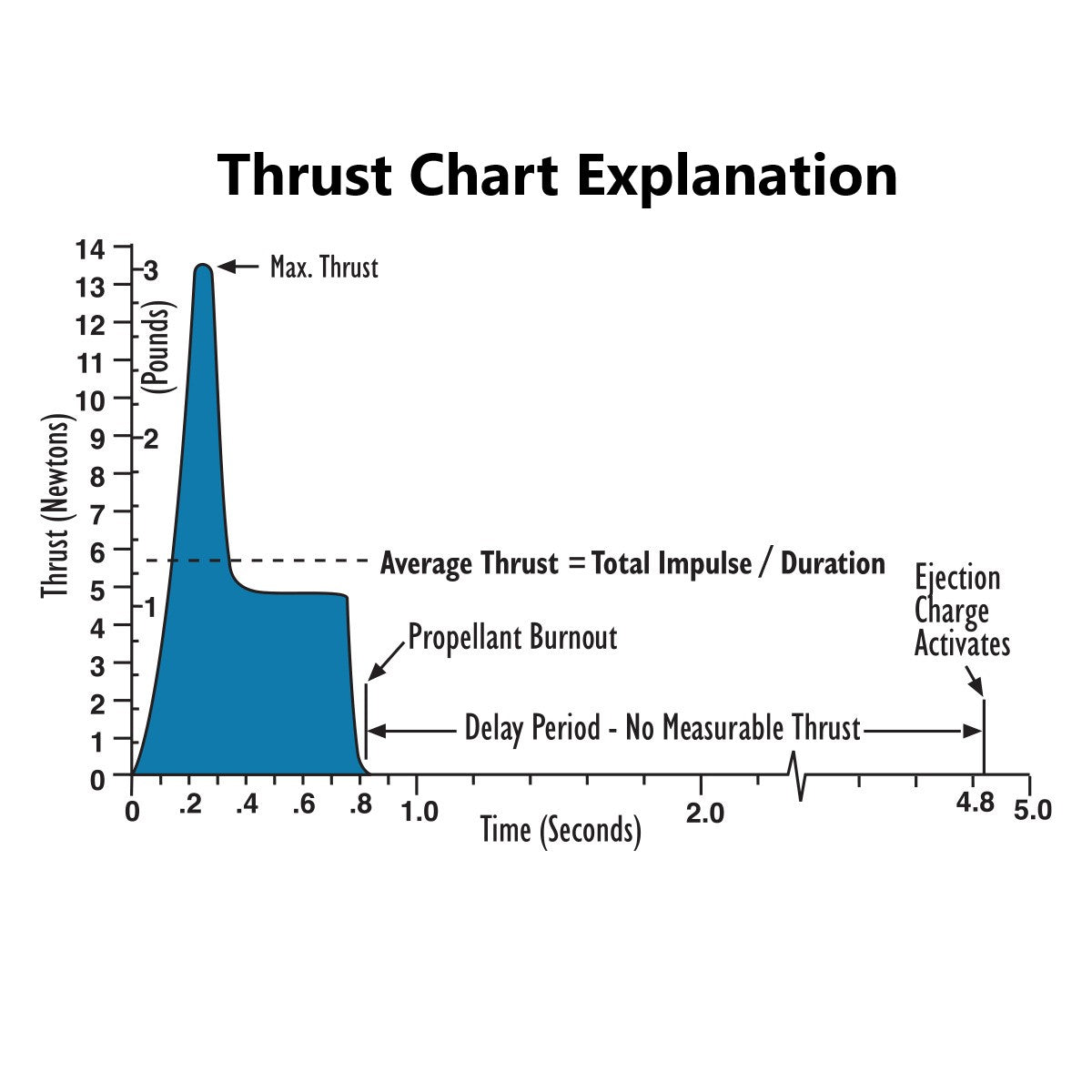

Model Rocket Thrust Curve Example

E16-6 Engines (29 mm)

SKU: 001697
$25.49
Sale Sold out

ENGINES FOR MODEL ROCKETS

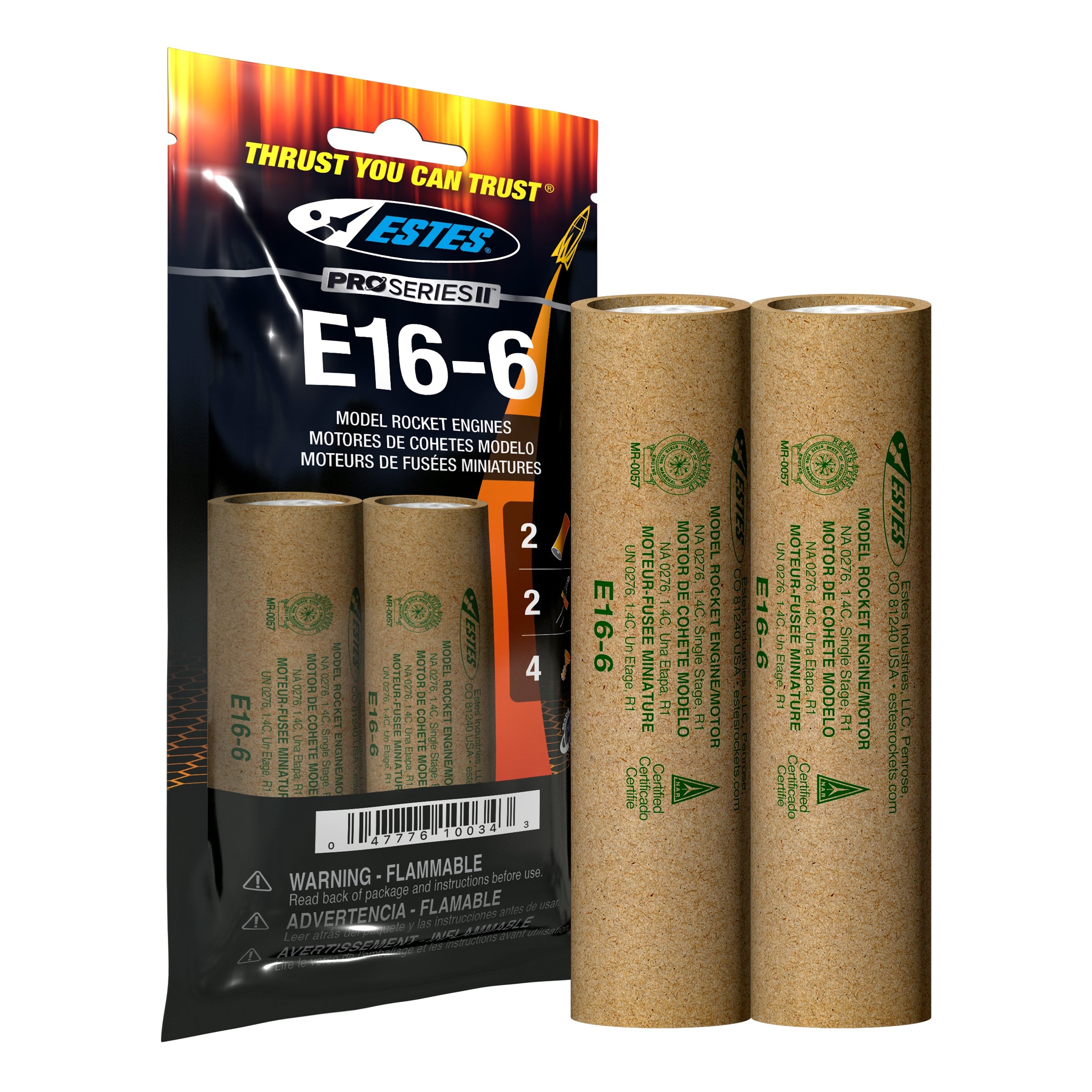

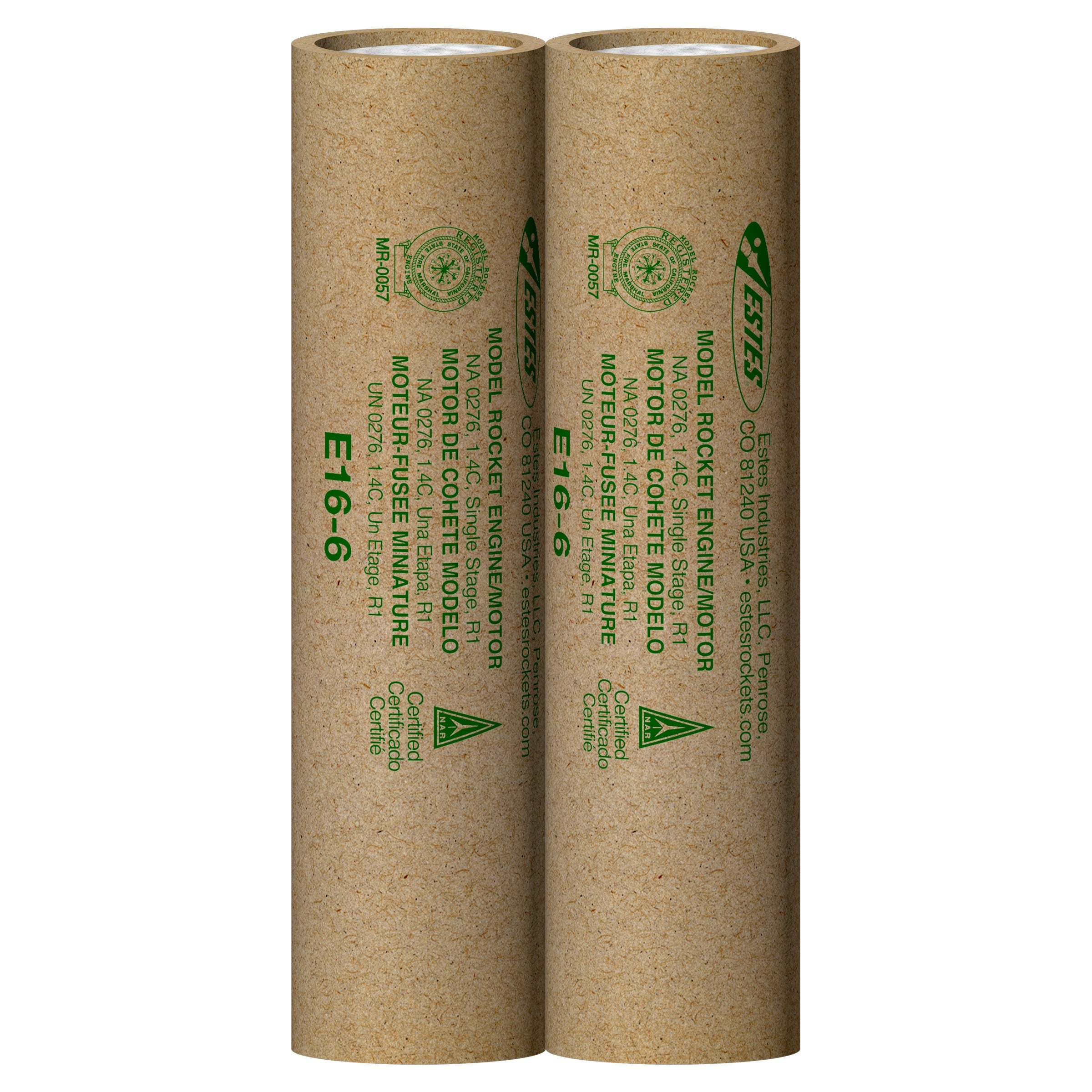

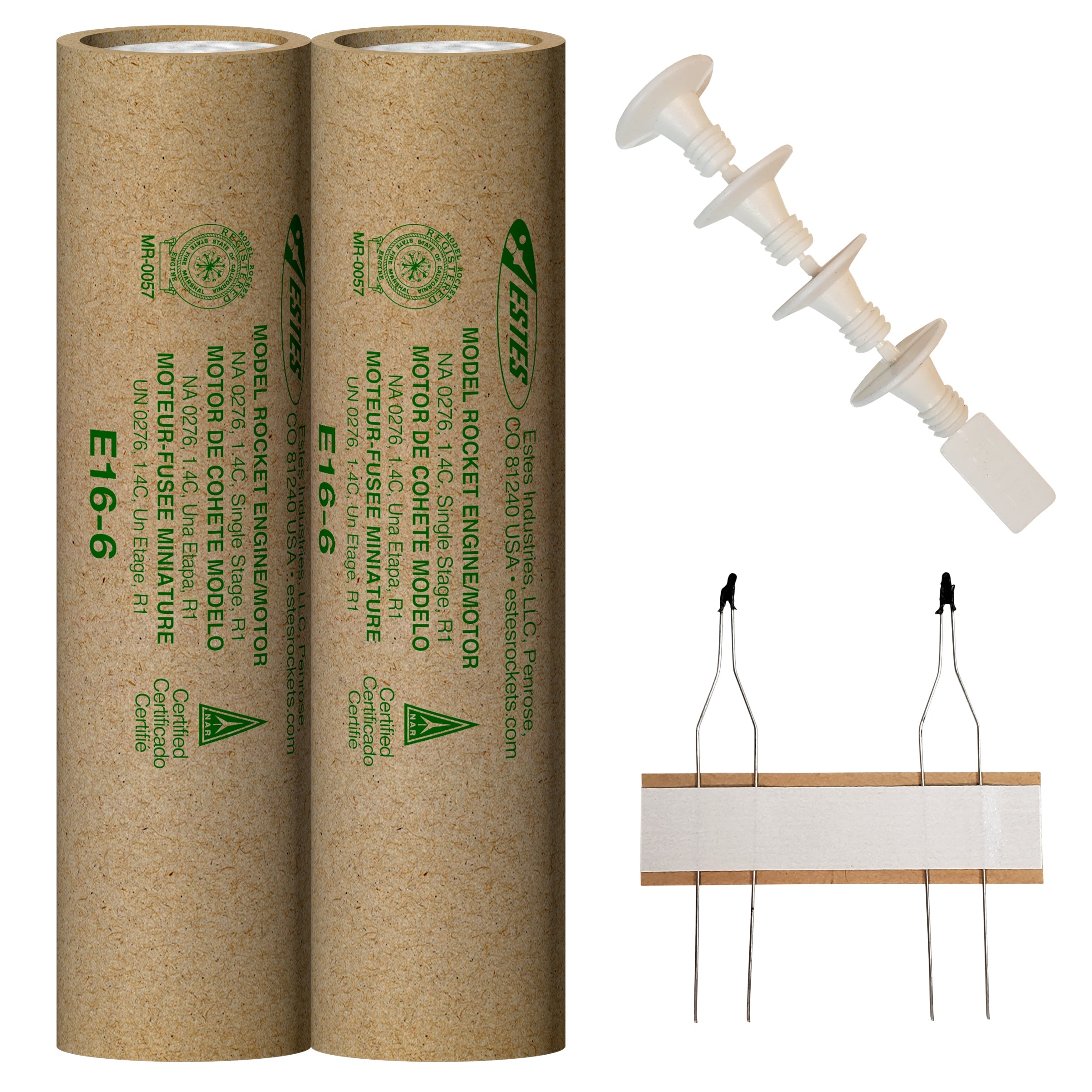

2 – E16-6 Engines
2 – Starters
4 – Starter Plugs

ATTENTION: These engines cannot be sent to post office boxes. Please be sure to provide a PHYSICAL ADDRESS when purchasing E and F sized engines.

Overview

The Estes E16-6 engine is a 29mm diameter upper stage engine designed for model rocket flight. This engine can also be used as a single stage engine. Maximum lift weight is 16 ounces. Each package includes 2 engines, 2 starters and 4 starter plugs.

ATTENTION: Residents of California, New Jersey, Rhode Island and North Dakota please review the Terms of Sale for state specific restrictions or Click Here for State Specific Restrictions..

Overview

Estes E16-6 Model Rocket Engines

Technical Specifications

Technical Specifications

  • Total Impulse

33.68 N-sec
  • Time Delay

6 Seconds
  • Max Lift Weight

16.0 oz (453 g)
  • Max Thrust

26.44 Newtons (5.9 lbs)
  • Thrust Duration

2.09 Seconds
  • Length

4.5 in. (11.4 cm)
  • Diameter

29 mm
  • Weight

2.92 oz. (82.8 g)
  • Propellant Weight

1.41 oz (40.0 g)

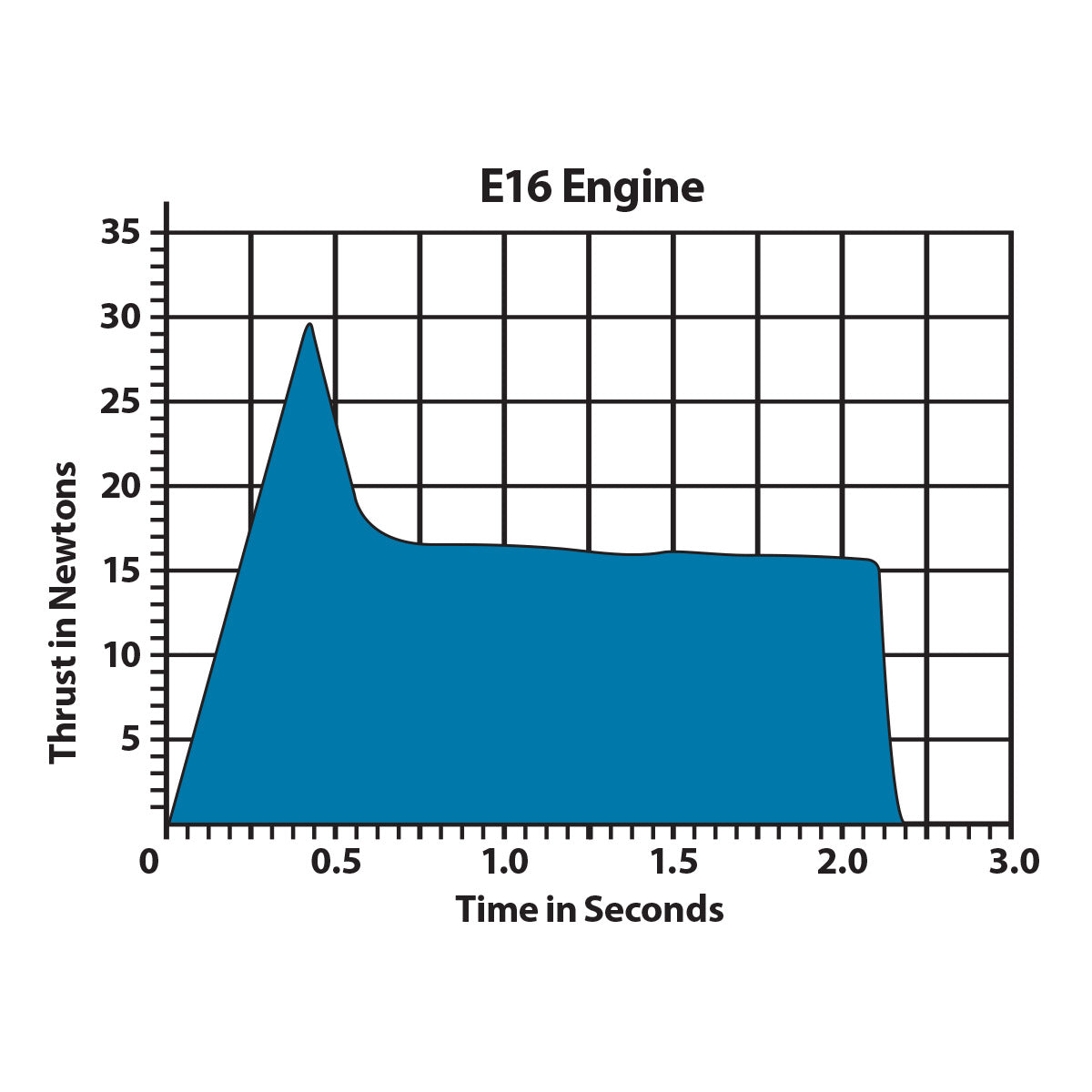

E16 Model Rocket Engine Thrust Curve Chart
