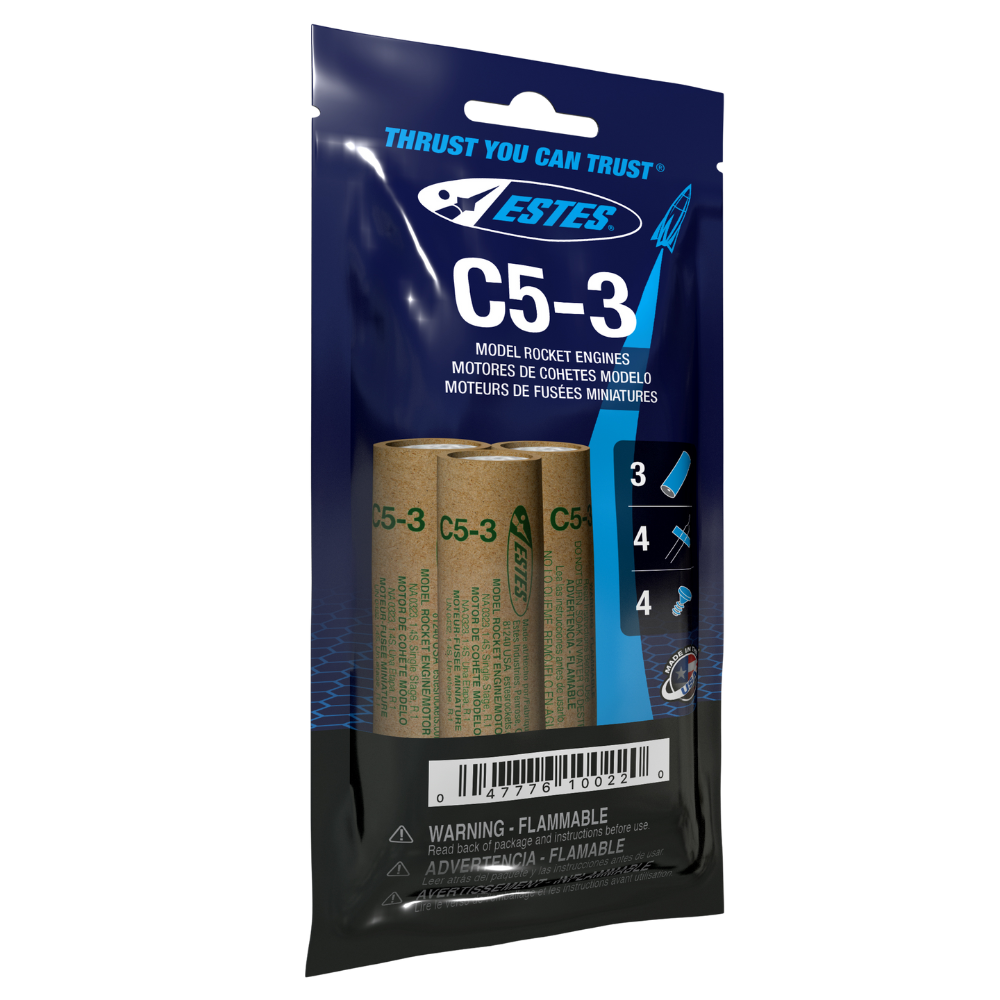

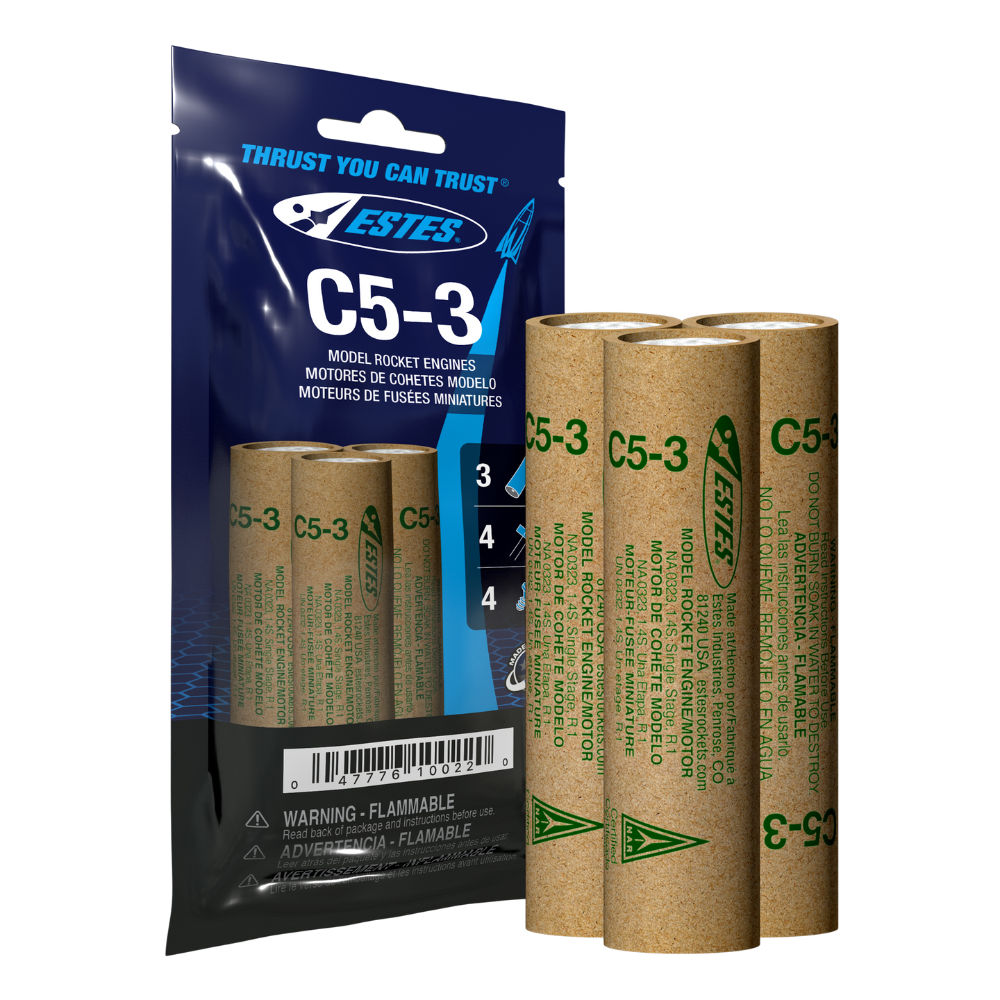

Estes C5-3 Package and Rocket

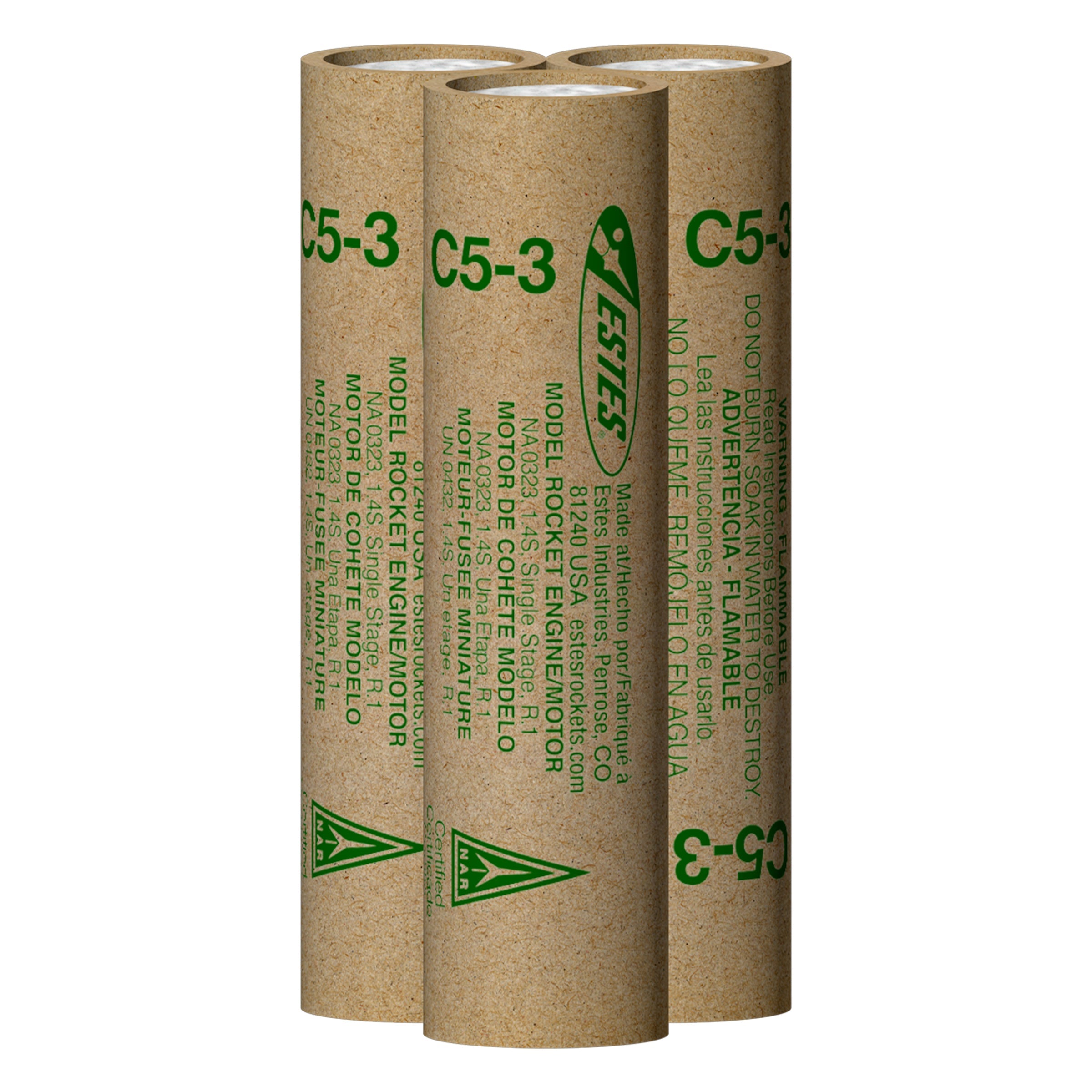

Estes C5-3 1617 Single Engine
Estes C5 Engine Thrust Curve Chart

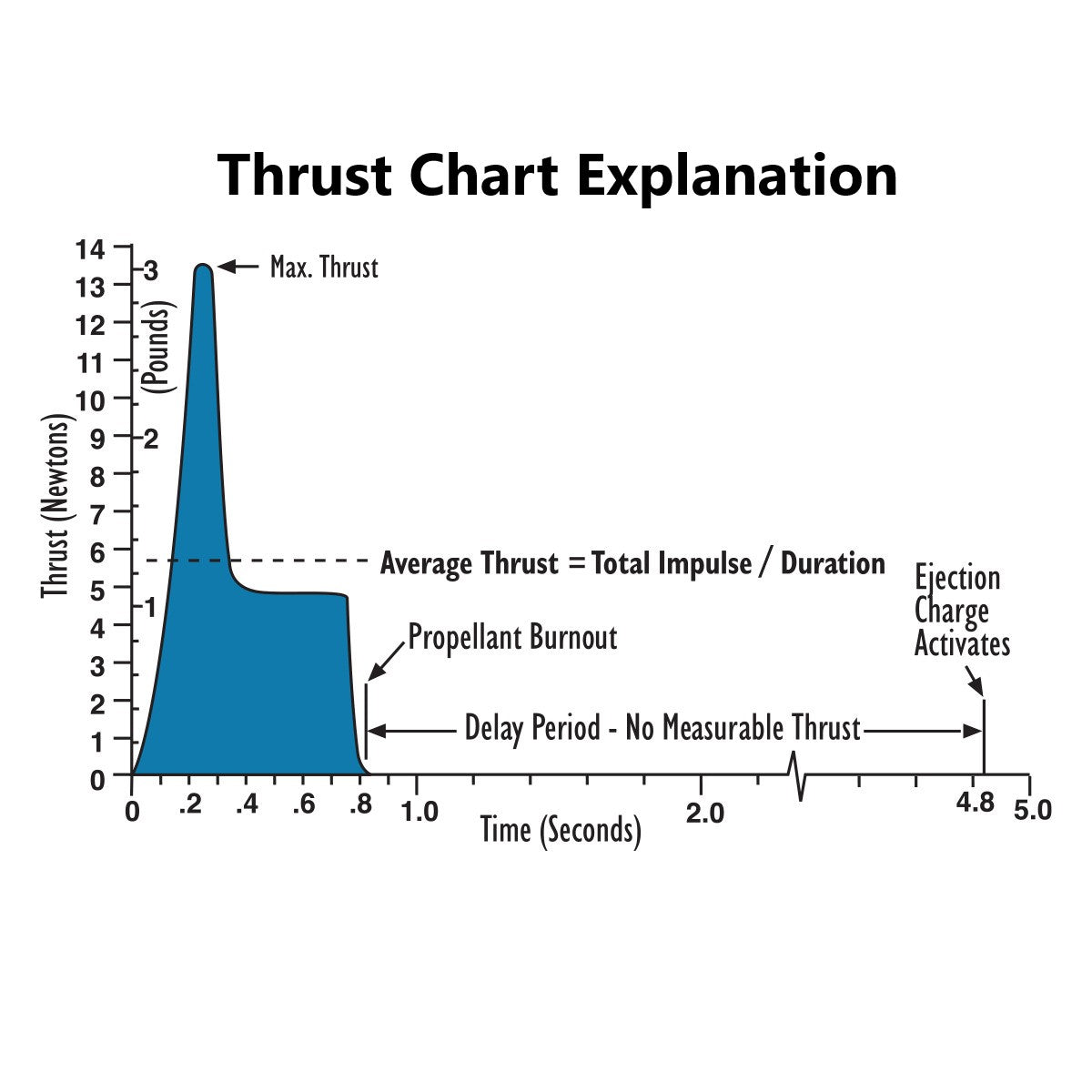

Model Rocket Thrust Curve Example
Estes C5-3 Model Rocket Engines
Estes C5-3 Package and Rocket
Estes C5-3 1617 Single Engine
Estes C5 Engine Thrust Curve Chart
Model Rocket Thrust Curve Example
Estes Rockets

C5-3 Engines

SKU: 001617
$12.99
Sale

ENGINES FOR MODEL ROCKETS

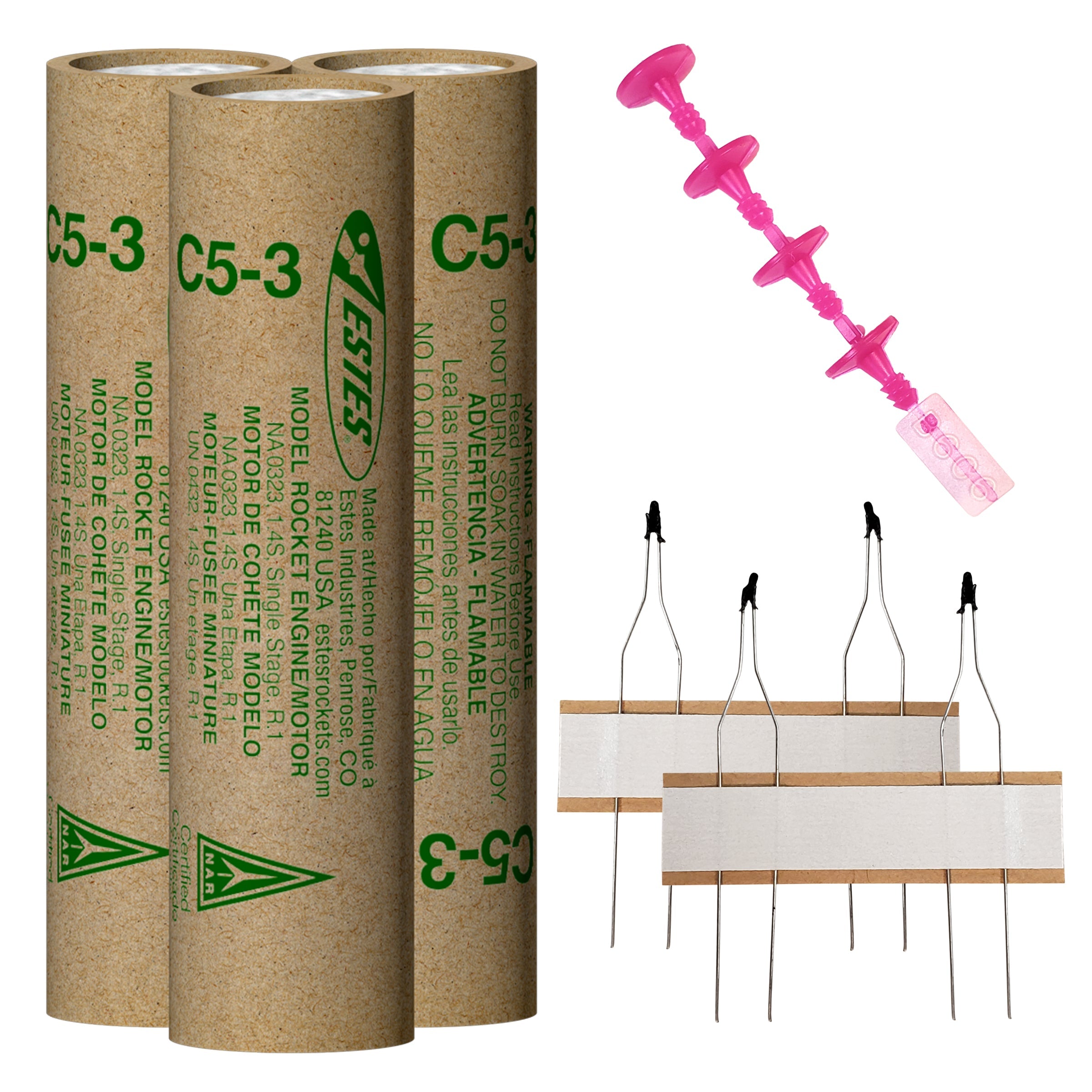

3 – C5-3 Engines
4 – Starters
4 – Starter Plugs

PLEASE NOTE: You must have a physical address for delivery.

Overview

Recommended Rockets

Specs

Reviews

Overview

The Estes C5-3 engine means 50% increase in maximum thrust over a standard C engine and the punch you need to propel those heavier rockets off the pad. The Super C is a great choice for larger birds and for payload rockets, like competition egg-lofters, that need that extra push.

ATTENTION: Residents of California, New Jersey, Rhode Island and North Dakota please review the Terms of Sale for state specific restrictions or Click Here for State Specific Restrictions.

Overview

Estes C5-3 Model Rocket Engines

Compatible Rockets

NASA SLS Model Rocket Kit
NASA SLS
$76.99
Estes 2198 New Shepard Box with Rocket
Blue Origin New Shepard
$69.99

Technical Specifications

Technical Specifications

  • Total Impulse

10.00 N-Sec

  • Time Delay

3 Seconds

  • Max Lift Weight

8.0 oz

  • Max Thrust

20.40 Newtons (4.6 lbs)

  • Thrust Duration

1.85 Seconds

  • Length

2.8 in. (7 cm)

  • Diameter

18 mm

  • Weight

0.83 oz. (23.6 g)

  • Propellant Weight

0.39 oz (11 g)

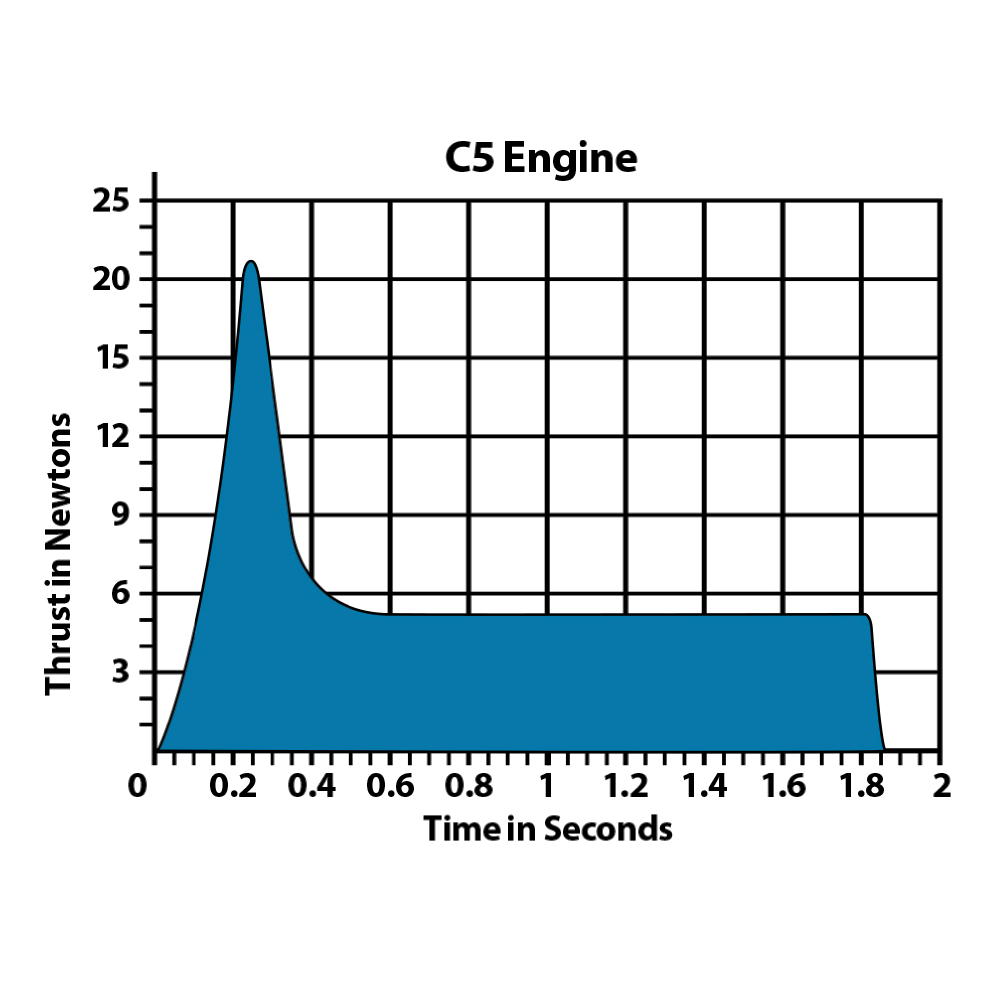

C5 Model Rocket Engine Thrust Curve Chart

Customer Reviews

Based on 8 reviews
100%
(8)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
a
a.f. (Berkeley, CA)
extra powerful

the Super in these "Super C" motors definitely gives the rockets a nice extra push UP

P
Paul Hurtt (California, MD)
C5-3: Great engine!

Used the C5-3 on my 3rd flight of my " Boosted Bertha" 2nd stage. The C5-3 on the 3rd flight put it almost out of sight! My Grandson who launched it shouted out loud when the 2nd stage ignited. You could hear it on the ground! The smoke trail was easy to see. ' Chute deployed as advertised. Unfortunately our Boosted Bertha was grabbed by a rocket eating tree as it floated down to earth. No chance of getting it back. :-(

M
Michael Washabaugh (Norristown, PA)
CGreat for Blue Origin, too powerful for Mars Destination

C5-5 worked well in a baseball field with surrounding mature trees. Blue Origin didn't get too high or drift away -- three successful launches/recoveries. Not so for the Mars Destination, which went much higher, and we lost it to the trees after launch three -- it went A LOT higher than the Blue Origin, even though this was the recommended low-end engine. The kids had a blast but were very bummed out to lose one of their favorites (another one has been ordered). Next time, we will use B6-4 engines in the Mars Destination to keep the drift to a minimum.
